Design the beam. Check it against R149.

Cutline traces light through an LED projector or a reflector, ray by ray. It aims the beam the way an approval laboratory does and measures every point, line and zone of UN Regulation No. 149. It also checks any lamp's light distribution against every market, and where lamps sit on the vehicle. It runs in your browser, and your files stay on your computer.

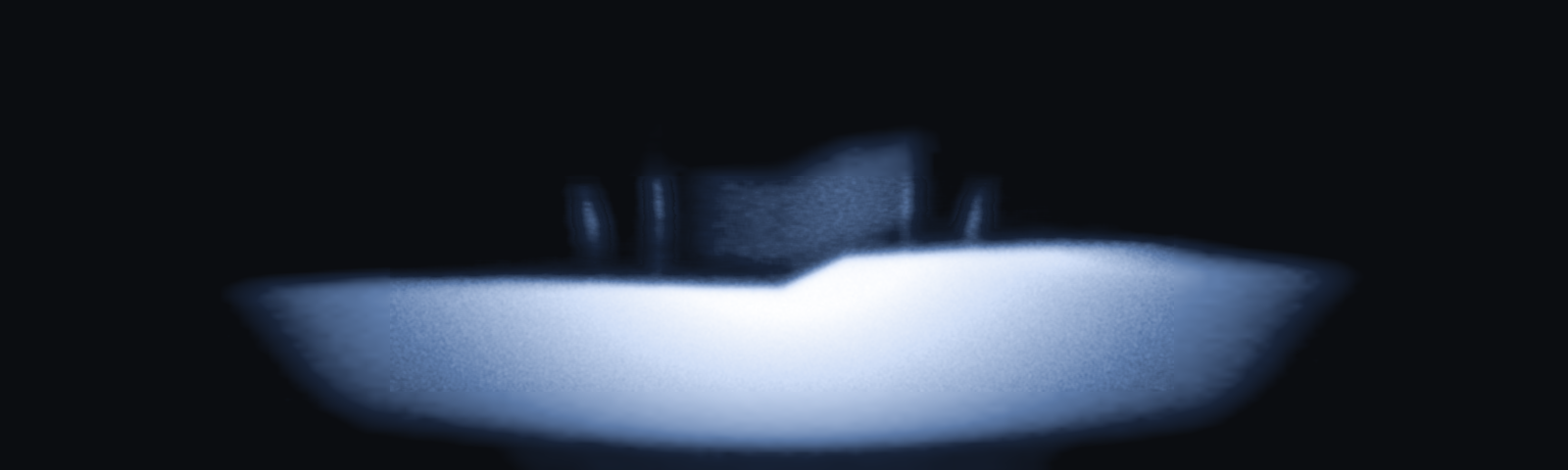

The default projector's beam, traced with 20 million rays and aimed by its cut-off: 26 of 26 requirements met.Intended cut-offPassNearFail

Every requirement, with its paragraph

For the beam class you choose, Cutline lists every limit in the 01 series of R149 and measures it through a receiver the size the regulation sets. It gives the margin and the statistical error of each value, and cites the table or paragraph it comes from. This is the default projector's sheet, computed when this page was built.

UN R149, 01 series: Class C passing beam

Default LED projector, right-hand traffic, aimed by three lines

Meets the regulation: 26 of 26
RequirementMeasuredLimitMarginResult
Cut-off
Cut-off sharpness at 2.5°LAnnex 6 §2.2.2 (p. 75)0.31G from 0.13 to 0.4+22%Pass
Cut-off linearity, 1.5° to 3.5°Annex 6 §2.2.3.1 (p. 75)0.04°inflections within 0.2°+82%Pass
Glare
Zone IIITable 6 Parts A and C (pp. 23–24)434 cd ±5%nowhere above 625 cd+31%Pass
BRTable 6 Part A (p. 23)288 cd ±9%at most 1,750 cd+84%Pass
Segment BLLTable 6 Part A (p. 23)36.3 cd ±6%nowhere above 625 cd+94%Pass
B50LTable 6 Part A (p. 23)46.2 cd ±8%at most 350 cd+87%Pass
Overhead signs
S50 + S50LL + S50RRTable 6 Parts A and B (pp. 23–24)317 cd ±6%at least 190 cd+67%Pass
S100 + S100LL + S100RRTable 6 Parts A and B (pp. 23–24)494 cd ±5%at least 375 cd+32%Pass
Road ahead
PTable 6 Part A (p. 23)109 cd ±10%at least 63 cd+73%Pass
75RTable 6 Part A (p. 23)13,987 cdat least 12,100 cd+16%Pass
50LTable 6 Part A (p. 23)8,519 cd5,000 cd to 37,000 cd+70%Pass
50VTable 6 Part A (p. 23)8,644 cdat least 5,100 cd+69%Pass
50RTable 6 Part A (p. 23)16,134 cdat least 10,100 cd+60%Pass
Segment 50Table 6 Part A (p. 23)6,759 cd ±3%everywhere at least 2,540 cd+166%Pass
Segment 40LLTable 6 Part A (p. 23)3,351 cd ±5%everywhere at least 850 cd+294%Pass
40LTable 6 Part A (p. 23)7,499 cd ±3%at least 2,800 cd+168%Pass
40RTable 6 Part A (p. 23)7,783 cd ±3%at least 2,800 cd+178%Pass
Segment 40RRTable 6 Part A (p. 23)3,365 cd ±5%everywhere at least 850 cd+296%Pass
25VTable 6 Part A (p. 23)14,877 cdat least 2,500 cd+495%Pass
Segment 25LTable 6 Part A (p. 23)2,156 cd ±4%everywhere at least 1,180 cd+83%Pass
Segment 25Table 6 Part A (p. 23)6,307 cd ±3%everywhere at least 1,700 cd+271%Pass
Segment 25RTable 6 Part A (p. 23)2,013 cd ±4%everywhere at least 1,180 cd+71%Pass
Segment 15Table 6 Part A (p. 23)741 cd ±4%everywhere at least 425 cd+74%Pass
Segment 10Table 6 Part A (p. 23)6,834 cd ±3%everywhere at least 500 cd+1267%Pass
Foreground
Segment 10 and belowTable 6 Part A (p. 24)9,030 cdat most 0.8 × 50R+30%Pass
Flux
Minimum flux§4.5.3.2 and Tables 3a/3b (pp. 16–17)1,230 lmsource ≥ 1000 lm, or Zone I ≥ 400 lm and Zone II ≥ 200 lm+23%Pass

Aimed 0.01° down and 0.08° left. Traced with 20 million rays; a passing value within 10% of its limit, or within twice its statistical error, is marked near.

Aimed the way the laboratory aims it

R149 measures a lamp after it has been aimed by its own cut-off. Cutline follows the instrumental method of Annex 6, so a beam that looks right on screen also has to sit right after aiming.

  1. Find the cut-off

    A scan rises through the beam at 2.5° on the driver's side, in steps of 0.05°. The steepest fall of log intensity marks the cut-off, and it goes onto line B, 0.57° below the horizon.

  2. Aim it sideways

    By the method the applicant chooses: three vertical scans across the rising edge, or one scan along the line 0.2° down. Either way, the elbow lands where the regulation puts it.

  3. Measure through the receiver

    Every value is the average over a 65 mm receiver at 25 m. Where too few rays arrive, the receiver widens and the value carries its error, so noise is never mistaken for a pass.

101001,00010,000100,0003°D2°D1°D01°U2°ULine B, 0.57°DVertical angle, aimed beamcd, log scale

The scan at 2.5°L through the default projector's beam. Its steepest fall is G = 0.31 over 0.1°, inside the 0.13 to 0.40 that R149 allows, and after aiming it sits on line B.

Two kinds of lamp, traced in section

Every value can be changed. Colour dispersion in the lens, surface texture, haze and the energy lost at each surface are all part of the trace. The projector's starting design meets Class C; the reflector's is a starting point that does not yet.

LED projector

An ellipsoidal reflector focuses the LED onto a shield, and an aspheric lens projects the shield's edge as the cut-off.

Requirements met
26of 26
Optical efficiency
37%
Peak intensity
16.6kcd

Multi-facet reflector

A faceted paraboloid places one image of the LED per facet under the cut-off; no lens, no shield.

Requirements met
20of 26
Optical efficiency
55%
Peak intensity
64.4kcd

Any lamp, every market

Open an IES or EULUMDAT file of a headlamp or a signal lamp, or send the beam you traced. Cutline checks it against each market by that market's own laboratory method, and against your own targets.

  1. See it as an engineer does

    Isolux at 25 m or intensity, on the road surface or a target, in false colour or heat, on a scale you set. A uniformity map shows each direction against its surroundings, so dark patches and stripes stand out and the cut-off does not.

  2. Check every market

    UN R149 for right- and left-hand traffic, UN R123, UN R148 for signal lamps, FMVSS 108, CMVSS 108, Taiwan's VSTD and India's AIS drafts. Each value cites its source; national rules show which UN series they stand on.

  3. Share the report

    One HTML file with the summary, the pictures, every requirement and your targets, ready to print to PDF. Markets Cutline cannot check from an official source are listed with the reason, never guessed.

Where the lamps sit on the vehicle

Open an STL, OBJ or glTF model of the vehicle and click where each lamp goes. Cutline checks UN R48 and FMVSS 108: presence and number for the vehicle's category, heights to the apparent surface, distance from the outer edge, the separation of each pair, and the angles of geometric visibility, casting rays to find any bodywork that hides a lamp.

What it does not do

Cutline is for concept design. A passing result means the simulated design meets the limits, not that a lamp would pass at a technical service.

  • Type-approval photometry only. No colour, run-up time, conformity-of-production allowances, bend lighting or adaptive driving beams.
  • One optical unit, one LED. A production headlamp often combines several modules. The reflector's starting design still fails a few Class C requirements.
  • Simple scattering. Lens texture and outer-lens haze are modelled; dust, ageing and heat are not.
  • One distribution at a time. Rules comparing two states of a lamp, such as stop to tail ratios, are listed for you to check.
  • Meshes, not STEP. Export the vehicle from CAD as STL, OBJ or glTF. Rules relative to the rear window or other lamps are listed to check by hand.
  • Sources you can check. Every limit cites the official text, and the documentation lists the choices each regulation leaves open.

Open Cutline and trace the default projector.
